With its two-way operation (right/left) and 1.3 RPM speed, it offers the craftsman complete freedom in controlling the cutting direction and cooking time.
It is designed to withstand high operating temperatures; however, for optimal performance, it needs to be protected from oil leaks.
Its special, layered structure, ready for assembly along with the döner kebab tray, guarantees mechanical integrity and stability.

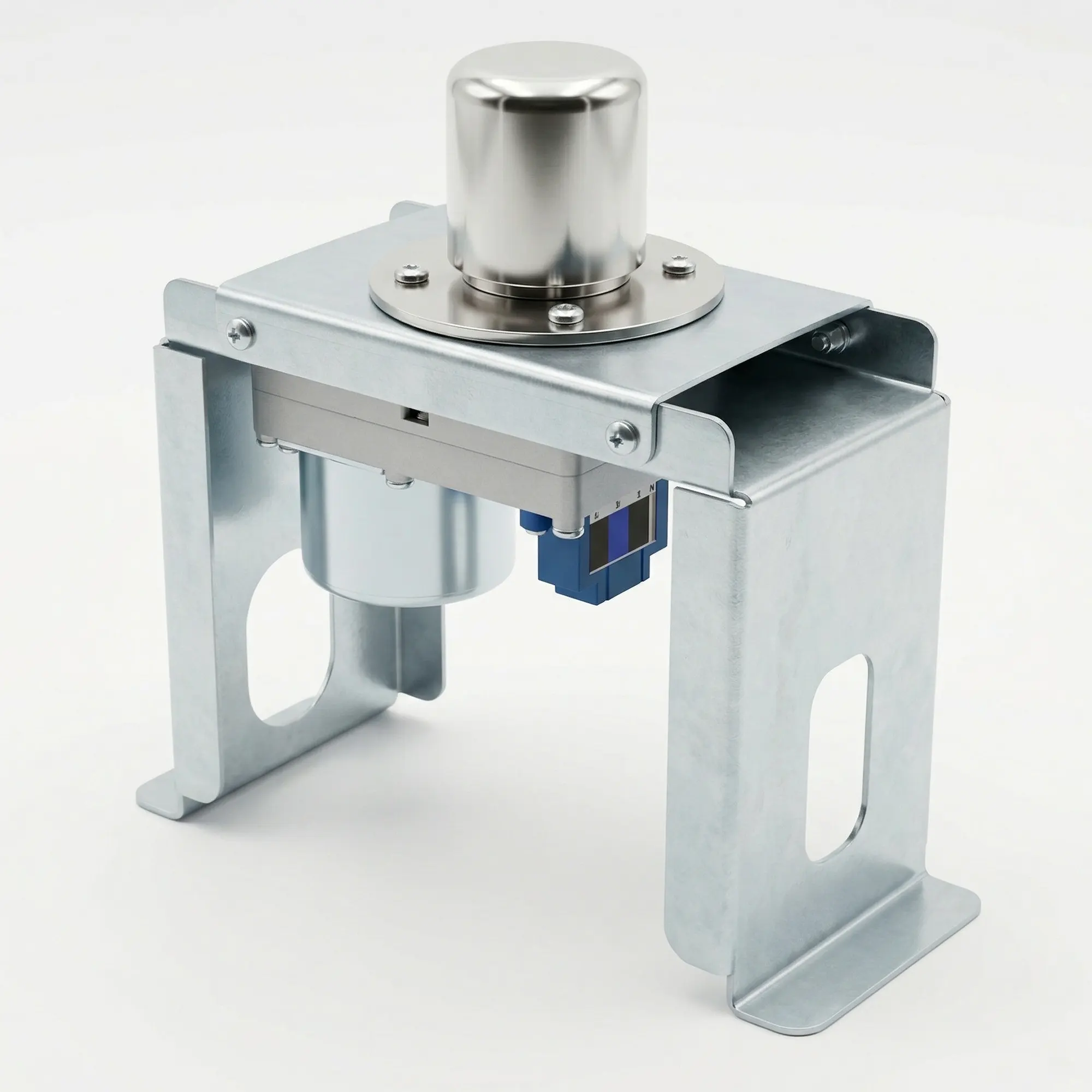

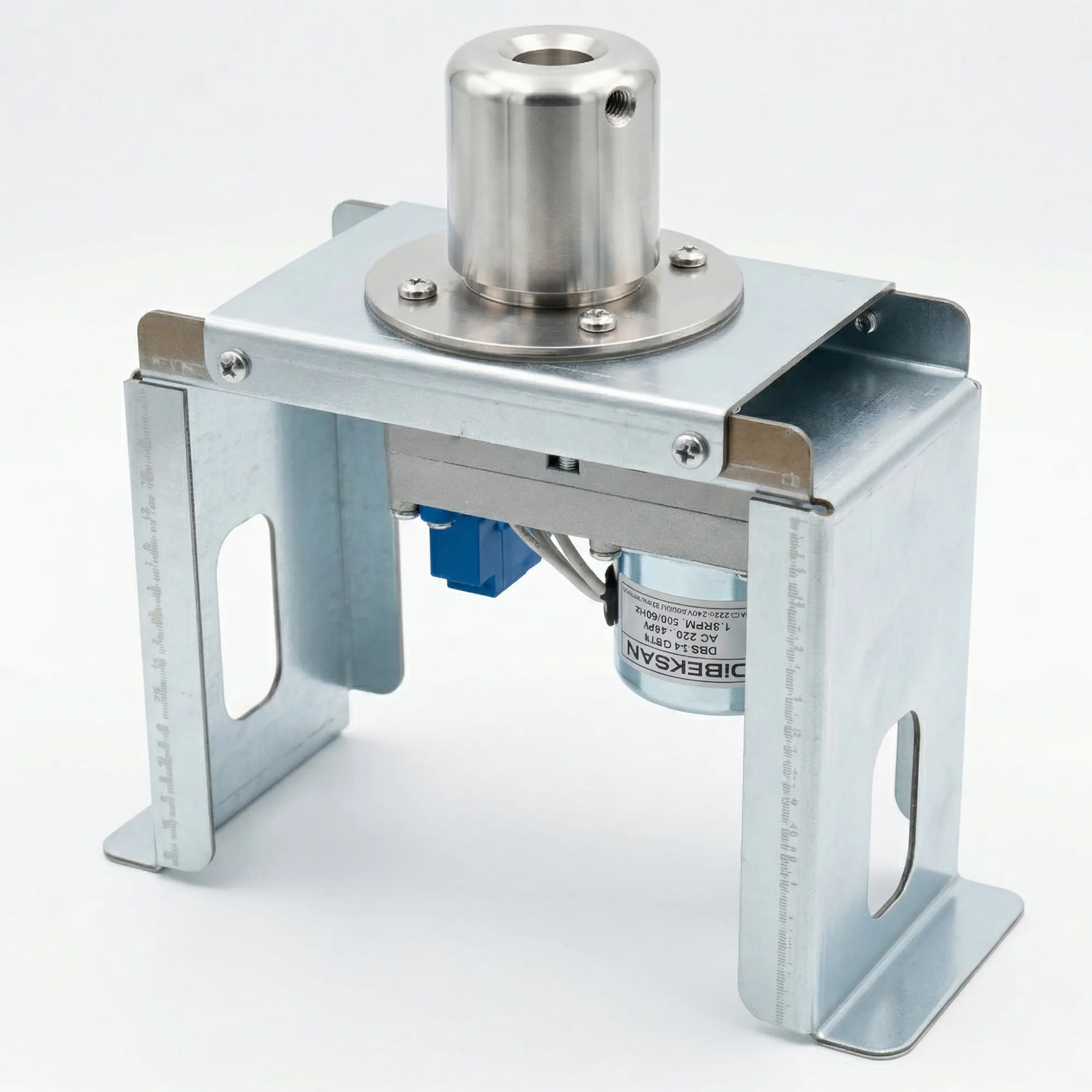

DA-69 DMC type lower motor set. 1.3RPM bidirectional rotation, heat-resistant construction and tray-integrated mounting system.
At the heart of industrial kitchens kebab grill Uninterrupted rotational power is vital for these systems. Developed with Dibeksan engineering. DA-69 DMC type sub-engine setIt is designed to provide smooth, quiet, and stable rotation even under heavy meat loads. This 240V motor, producing a rotational speed of 1.3 RPM (C=0.68µf), allows the meat to remain juicy on the inside while ensuring homogeneous cooking on the outside from all angles thanks to its bidirectional (right/left) operation feature. Although it is covered with high-temperature resistant insulation materials, it must be absolutely protected from oil leaks to maximize the motor's lifespan.

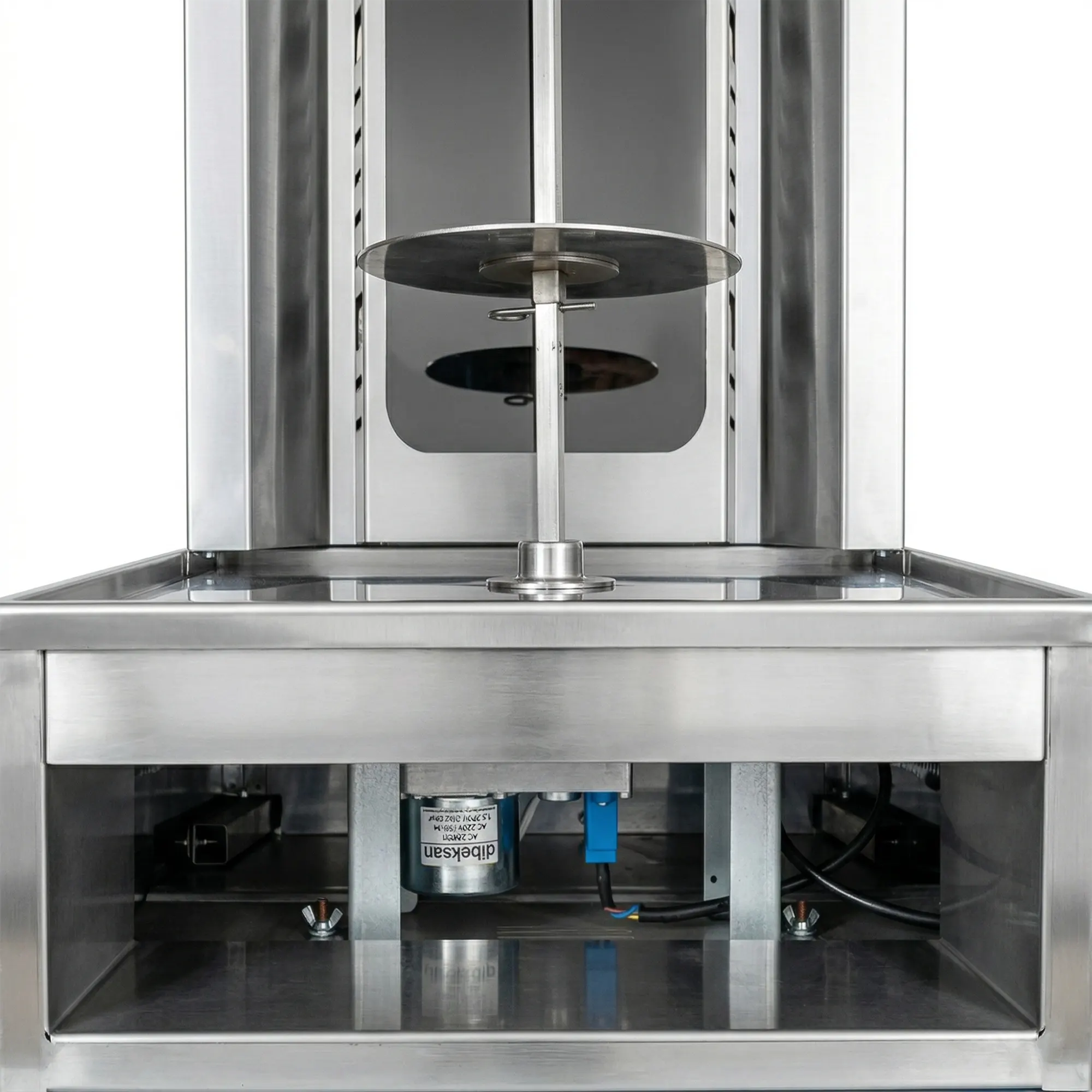

All with bottom-mounted engines Dibeksan DMC This part, which is factory compatible with the series of devices, has a unique layered assembly dynamic. According to the original arrangement, a sandwich setup is created with the fixing knob at the top, the tray unit that collects the meat fat in the middle, and the motor mechanism at the bottom (Knob -> Tray -> Motor). While this mechanical arrangement can be done with a moderate level of technical skill, the bidirectional switch wiring suitable for the AC 220V or 110V infrastructure of the system requires advanced electrical expertise for operational safety.
| Technical Specifications | |
|---|---|
| Model Code | DA-69 (Set) |
| Compatibility | DMC Series (Bottom-mounted engine) |
| Revolution and Direction | 1.3 RPM / Bi-directional |
| Assembly Arrangement | Knob (Top) -> Tray -> Motor (Bottom) |
| Energy Source | 220V | 110V You can specify this according to your order. |
